4G Module ZS91X Series

Worldwide coverage and strong functionality

ZS9100 is a LTE Cat-4 industrial grade communication module. It adopts 87-pin LCC package, and provides max 50Mbps uplink rate and 150M downlink rate. With the features of ultra-small size, abundant hardware and software interfaces, and a rich set of network protocols, ZS9100 extends its applicability of various M2M applications, such as smart metering, vehicle OBD, wireless POS, location tracker, industrial router, etc.

Features

未标题-1

ZS9100 is an industrial grade communication module adopting Qualcomm platform, and support TDD-LTE/FDD-LTE/WCDMA/CDMA2000/TD-SCDMA/EVDO/GSM
LTE Cat-4 standard, optimized hardware and software for M2M applications
Outstanding anti-ESD performance
Industrial grade high-performance and abundant hardware interfaces
Various network protocols(PAP、CHAP、PPP) and multiple functions(GNSS, Remote wakeup, MMS, SMS)
Support FOTA, complete EVB kit, fast service response

Learn More

4G Module ZS95X Series

Economic 5-mode and highly reliable design

ZS9500 is a LTE-Cat4 industrial grade 5-mode communication module. It supports TDD-LTE, FDD-LTE, WCDMA, TD-SCDMA and GSM. It adopts 87-pin LCC package and dimensions are 30mm×30mm×2.5mm. With the features of ultra-small size, abundant hardware and software interfaces, and a rich set of network protocols, ZS9500 extends its applicability of various M2M applications, such as smart metering, vehicle OBD, wireless POS, location tracker, industrial router, etc.

Features

ZS9500 is an industrial grade LTE Cat-4 module, supporting TDD-LTE/FDD-LTE/WCDMA/TD-SCDMA/GSM
Deliver 150Mbps downlink rate and 50Mbps uplink rate
LCC Package, ultra-small size
Industrial grade high-performance and abundant hardware interfaces
Various network protocols (UDP, TCP, DNS, HTTP, FTP)
Optimal option for numerous M2M applications, such as smart metering, vehicle OBD, wireless POS, location tracker, industrial router, etc.
Support FOTA, provide complete EVB kit, fast service response

Learn More

4G Module ZS96X Series

Fully new Cat-1 module and highly cost-effective

ZS9600 is a LTE Cat-1 industrial grade communication module. It supports TDD-LTE, FDD-LTE, and GSM. It adopts LCC LGA package and dimensions are 28.2mm×28.2mm×2.5mm. ZS9600 also integrates abundant hardware interfaces and a rich set of network protocols. With the features of highly reliable design, high quality performance and cost-effective, ZS9600 extends its applicability of various M2M applications, such as smart metering, CPE, location tracker, industrial router, etc.

Features

ZS9600 is an industrial grade LTE Cat-1 module, supporting TDD-LTE/FDD-LTE/GSM
Deliver 10Mbps downlink rate and 5Mbps uplink rate
LCC+LGA Package, ultra-small size
Industrial grade high-performance and abundant hardware interfaces
Various network protocols (HTTP, FTP, TCP, UDP, PPP, PAP, CHAP)
Optimal option for numerous M2M applications, such as smart metering, CPE, wireless POS, location tracker., etc.
Support FOTA, provide complete EVB kit, fast service response

Learn More

2G Module ZS5X Series

Ultra-small size and abundant hardware interfaces

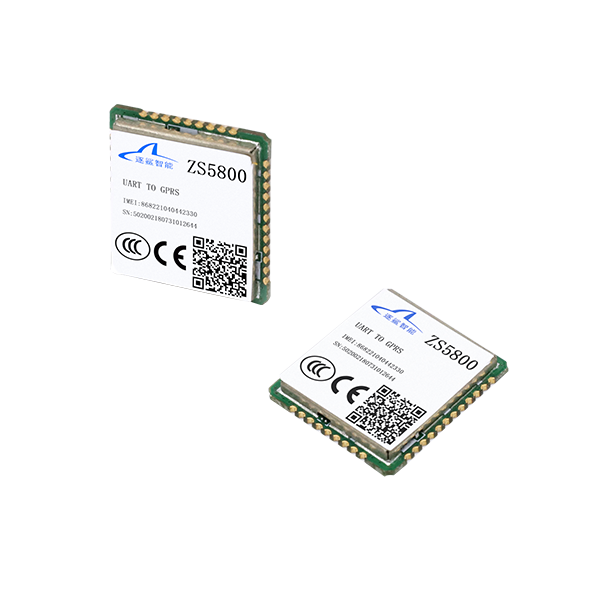

ZS5800 is a quad-band GSM / GPRS industrial grade communication module. It supports embedded SIM and adopts 42-pin LCC package. It features high reliability design and abundant hardware interfaces, which is suitable for various communication scenarios, such as smart metering, vehicle OBD, wireless POS, location tracking, industrial PDA, etc.

Features

LCC package, ultra-small size
Optimized hardware and software, low-power consumption
Outstanding anti-ESD performance
Industrial grade hardware interfaces
Multiple network protocols（TCP, UDP, PPP）
Complete EVB kit and fast service response

Learn More

NB-IoT Module ZS8X Series

Low power consumption and various network protocols

ZS8600 is an industrial grade NB-IoT communication module. It adopts LCC package with an ultra-small size. This module integrates a rich set of network protocols and abundant standard hardware interfaces. It is the optimal option for a wide range of M2M applications, such as smart city, smart metering, smart building, device monitoring, etc.

Features

Ultra-small size, 16*18*2.2mm
Wide operating temperature range and low power consumption
Max downlink rate 200Kbps
Support multiple network protocols(TCP/IP、UDP、MQTT、LWM2M、CoAP)
Support OpenCPU
Support FOTA, complete EVB kit, fast service response

Learn More

NB-IoT&GPRS Module ZS8602

Cost-effective and dual mode

ZS8602 is an industrial grade NB-IoT & GPRS dual mode communication module. It supports LTE Cat-NB1 and multiple GPRS bands(850/900/1800/1900 MHz). It adopts 68-pin LGA package, and features small size, low power consumption and high-performance. Seizing the advantages of both NB-IoT and GPRS, ZS8602 extends its capability of high-quality performance and wide-area coverage, which fully meets the needs of various M2M applications, such as smart energy, logistics tracking, smart wearables, smart industry, and smart city.

Features

ZS8602-内页1

Ultra-small size, 24mm *24mm * 2.3mm.
Wide operating temperature range and low power consumption
Support NB-IoT free falling to GPRS
3GPP R13 compliance, support upgrade to R14
Support multiple network protocols(TCP/IP, UDP, MQTT, LWM2M, CoAP), easy link to telecom operators and main cloud platforms
Support FOTA, complete EVB kit, fast service response

Learn More

NB-IoT Module ZS8603

High-quality performance and ultra-low power consumption

ZS8603 is an industrial grade NB-IoT communication module, fully compliant with 3GPP Release 14. It adopts 94-pin LCC package with an ultra-small size. This module applies the most advanced NB-IoT chipset, feature in ultra-low power consumption, high-quality performance, and low cost. It also integrates a rich set of network protocols and abundant standard hardware interfaces, easy link to multiple telecom networks and mainstream IoT platforms. It is the optimal option for a wide range of M2M applications, such as smart energy, logistic tracking, smart wearable devices, smart city, etc.

Features

ZS8603 is a NB-IoT communication module, fully new platform, advanced design, and excellent performance
Ultra-low operating power consumption, 0.002mW as the lowest in PSM mode
Enhanced signal sensitivity, up to -118dBm when no retransmission
Multiple network protocols (TCP/IP, UDP, MQTT, LWM2M, CoAP), easy link to various telecom operators and mainstream cloud platforms
Support OpenCPU
Optimal option for numerous M2M applications, such as smart energy, logistic tracking, smart wearable devices, smart city, etc.
Support FOTA, complete EVB kit, fast service response

Learn More

WiFi Module ZS3X Series

Ultra-low power consumption and rich applications

ZS3606 is a Wi-Fi wireless communication module developed especially for short-range communication scenarios. This module is compliant with IEEE 802.11/b/g/n standards and supports STA/AP/STA AP modes. With the features of ultra-small size, ultra-low power consumption and a wide range of operating voltage, ZS3606 is the optimal option for numerous M2M applications, such as industrial router, device monitoring, smart building, smart traffic, etc.

Features

ZS3606 is a WiFi communication module, support IEEE 802.11 b/g/n
Support STA/AP/STA+AP operating modes
Ultra-small size, 16*24*2.8mm
Ultra-wide operating voltage and ultra-low power consumption
Optimal option for numerous M2M applications, such as industrial routers, device monitoring, smart building, smart traffic, etc.
Complete EVB kit, fast service response

Learn More

Bluetooth Module ZS1X Series

Ultra-small size and strong networking capability

ZS1080 is a Bluetooth module developed especially for low-power short-range communication scenarios. This module offers all Bluetooth® low energy features v5.0 and supports Mesh-networking. It also features ultra-low power consumption, ultra-small size and abundant hardware interfaces. ZS1080 is the optimal option for a wide range of M2M applications, such as smart metering, wearable devices, portable medical devices, smart home, mobile phone accessories, etc.

Features

Low power consumption module optimized for M2M and IoT applications
Ultra small size, 10mm * 14.5mm * 2.2mm
Outstanding anti-ESD performance
A rich set of industrial grade hardware interfaces
2-Master 3-Slave networking, support software upgrade to Mesh-networking
Support OTA, complete EVB kit and fast service response
